Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
  3. Remove the mass air flow sensor (C).

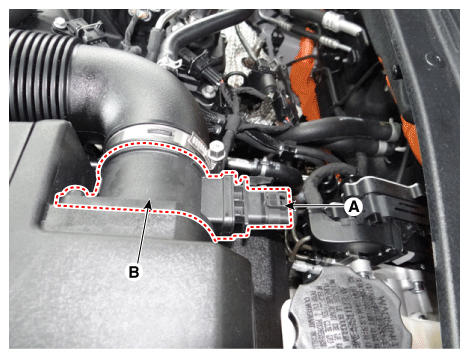

Fig 1: Locating MAFS Connector
G12308921Courtesy of KIA MOTORS AMERICA, INC.
