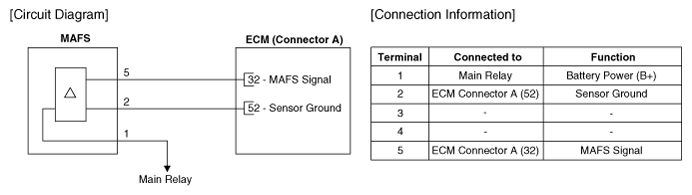

Home › Kia › 2017 › Optima Hybrid, 2.0L Eng VIN C › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Mass Air Flow Sensor (MAFS) › Schematic Diagrams › Circuit Diagram › Notes
