Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).

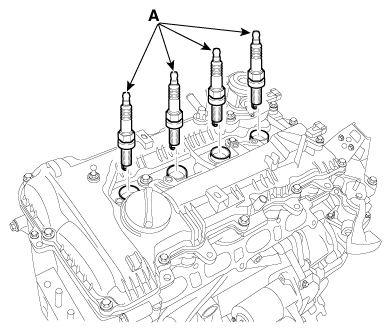

Fig 1: Locating Spark Plug
G12307099Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Be careful that no contaminates enter into spark plug holes.
