Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).

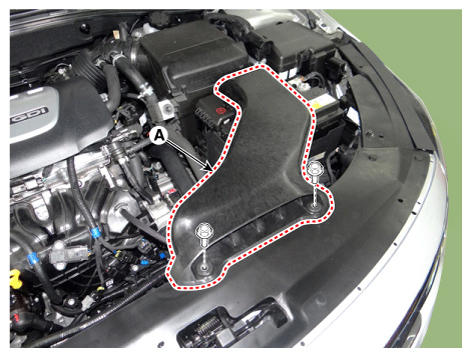

    Fig 1: Locating Air Duct With Bolts
    G12140208Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the boost pressure sensor connector (A).
  4. Remove the sensor (B) by loosening the mounting bolts.

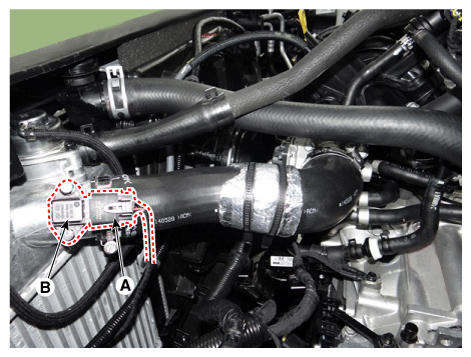

    Fig 2: Locating Boost Pressure Sensor And Connector
    G12140209Courtesy of KIA MOTORS AMERICA, INC.
