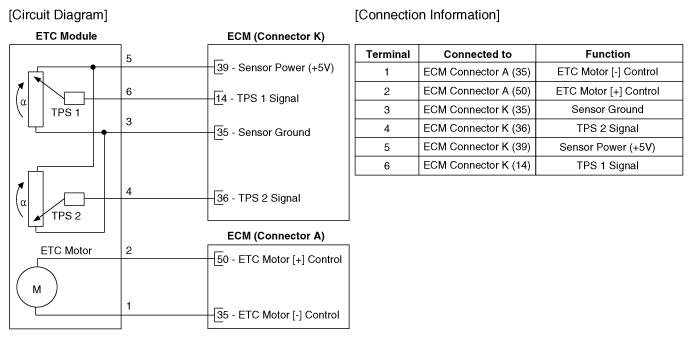

Home › Kia › 2017 › Optima LX 1.6T › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L (Except HEV) › ETC (Electronic Throttle Control) System › Schematic Diagrams › Circuit Diagram › Notes
