Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A), and then remove the sensor (B).

[Bank 1/Sensor 1]

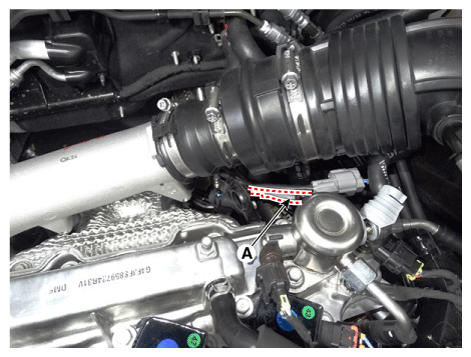

Fig 1: Locating Heated Oxygen Sensor Connector (Bank 1 / Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

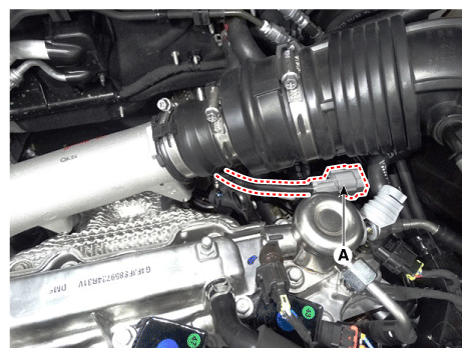

Fig 2: Locating Heated Oxygen Sensor (Bank 1 / Sensor 1)

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

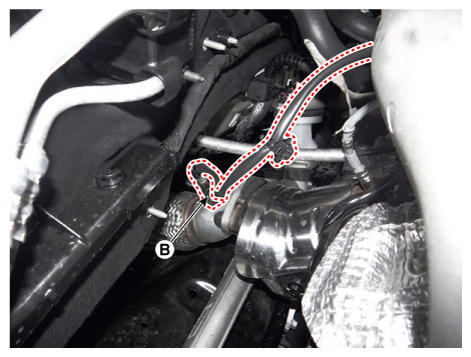

Fig 3: Locating Heated Oxygen Sensor Connector (Bank 1 / Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.

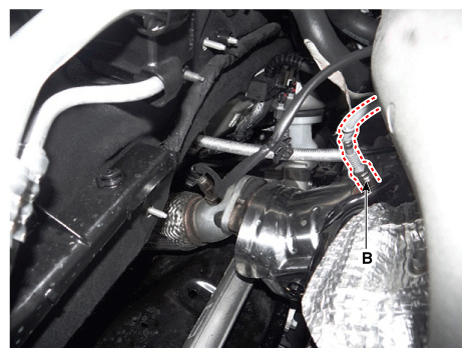

Fig 4: Locating Heated Oxygen Sensor (Bank 1 / Sensor 2)

Courtesy of KIA MOTORS AMERICA, INC.
