Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
  3. Remove the purge control solenoid valve (C).

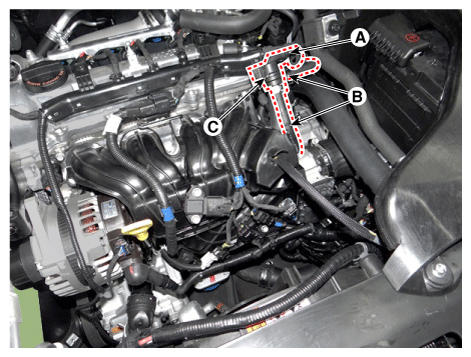

Fig 1: Locating Purge Control Solenoid Valve Connector, Vapor Hose And Purge Control Solenoid Valve
G12140273Courtesy of KIA MOTORS AMERICA, INC.
