Repair Procedures: Removal

Disconnect the battery negative (-) cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the wiring from the TCM bracket.

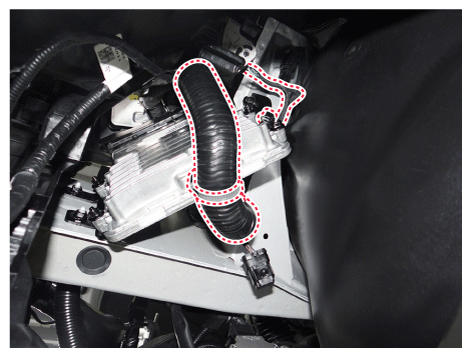

Fig 1: TCM Bracket Wiring
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the TCM mounting nut (A).

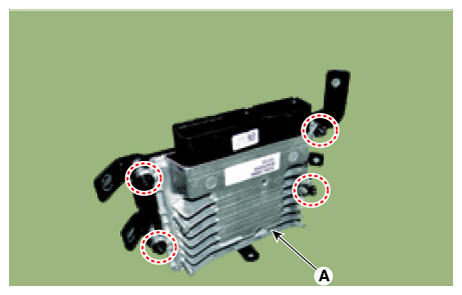

Fig 2: Locating TCM Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the TCM connector.
Remove the TCM from the bracket by loosening the nuts.

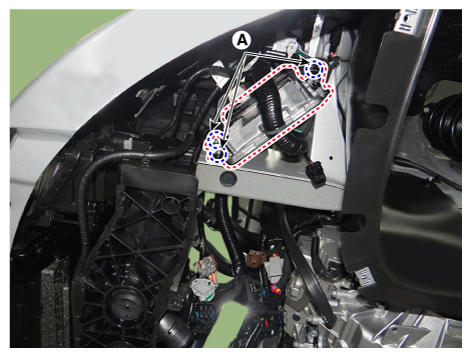

Fig 3: Locating TCM With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
