Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.

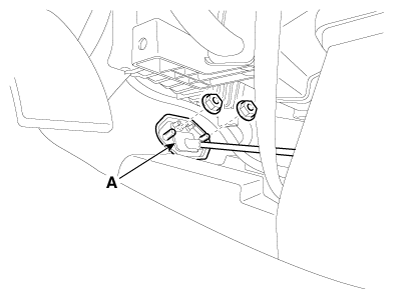

Install the shift cable retainer (A).
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 1: Locating Shift Cable Retainer With Nuts
Courtesy of KIA MOTORS AMERICA, INC.

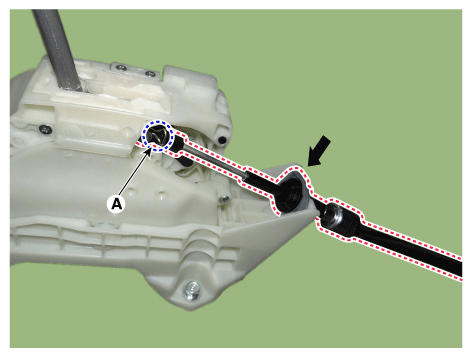

Insert the snap pin (A) after installing the shift cable.

Fig 2: Inserting Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

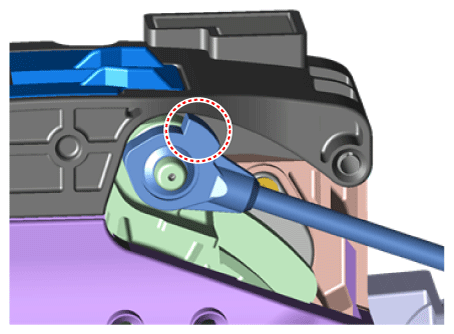

- Install the shift cable after checking the direction of projection to prevent wrong assembly.

  Fig 3: Shift Cable Installation Position
  Courtesy of KIA MOTORS AMERICA, INC.

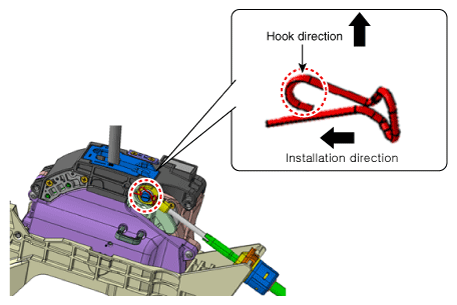

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

  Fig 4: Installing Snap Pin With Hook
  Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

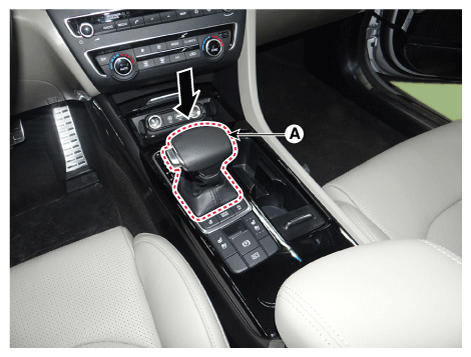

Install the knob & boots (A) by pressing the direction of arrow after installing the boots to the console upper cover.

Fig 5: Installing Knob & Boots
Courtesy of KIA MOTORS AMERICA, INC.

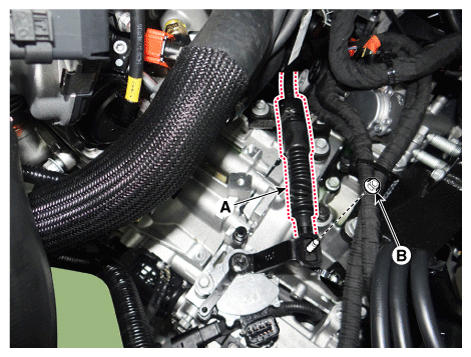

Install the shift cable (A) to bracket and then lightly tighten the nut (B).

Fig 6: Locating Shift Cable And Nut
Courtesy of KIA MOTORS AMERICA, INC.

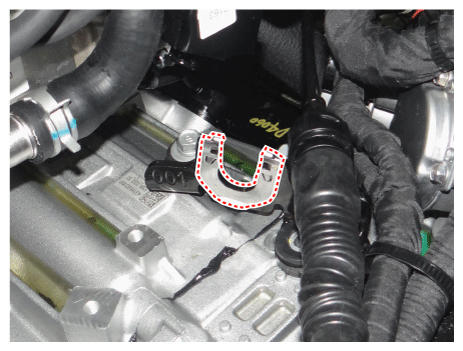

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)

Fig 7: Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

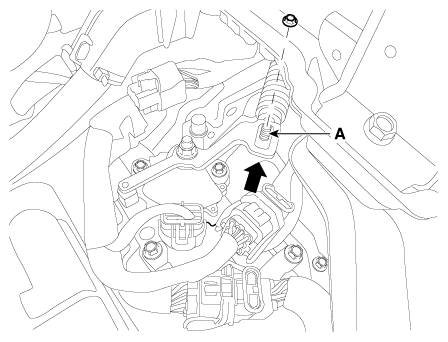

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 8: Pushing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
