Repair Procedures: Inspection

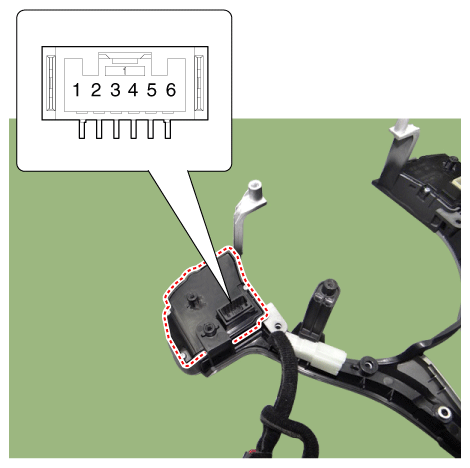

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function Switch Connector Terminal Resistance (kΩ) [± 3%] CANCEL 3 - 5 0.39 SET - 3 - 5 0.61 RES + 3 - 5 0.91 CRUISE 3 - 5 2.13 ASCC 3 - 5 3.63 - If not within specification, replace switch.
