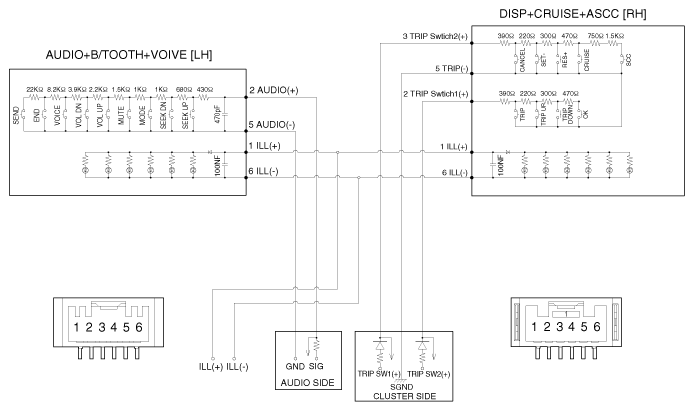

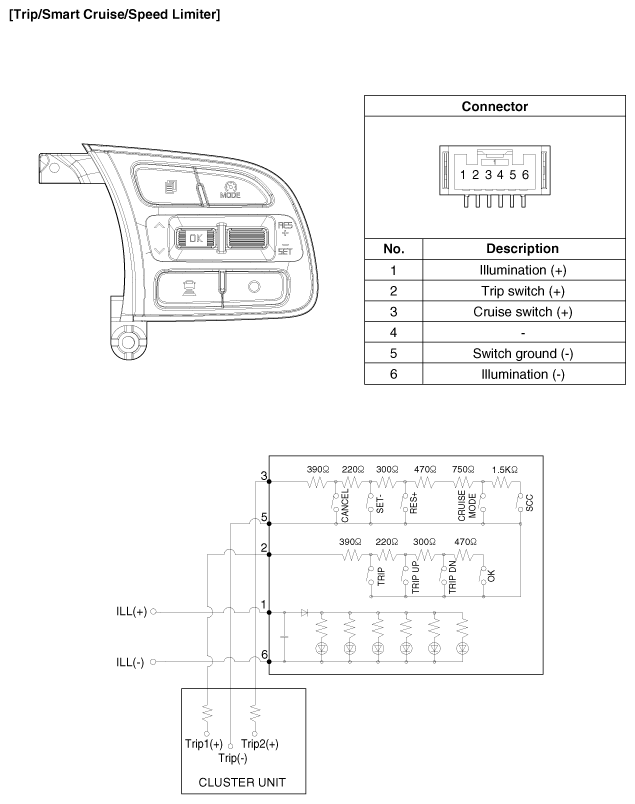

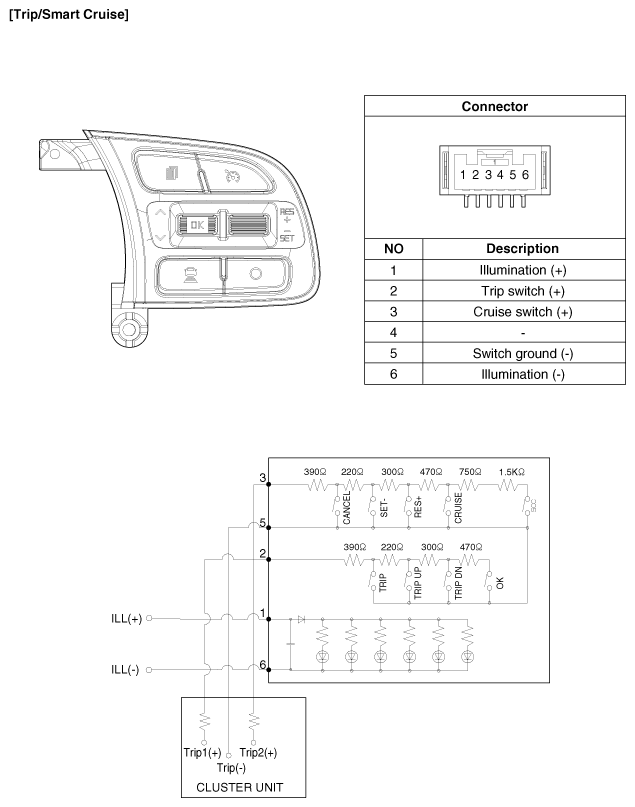

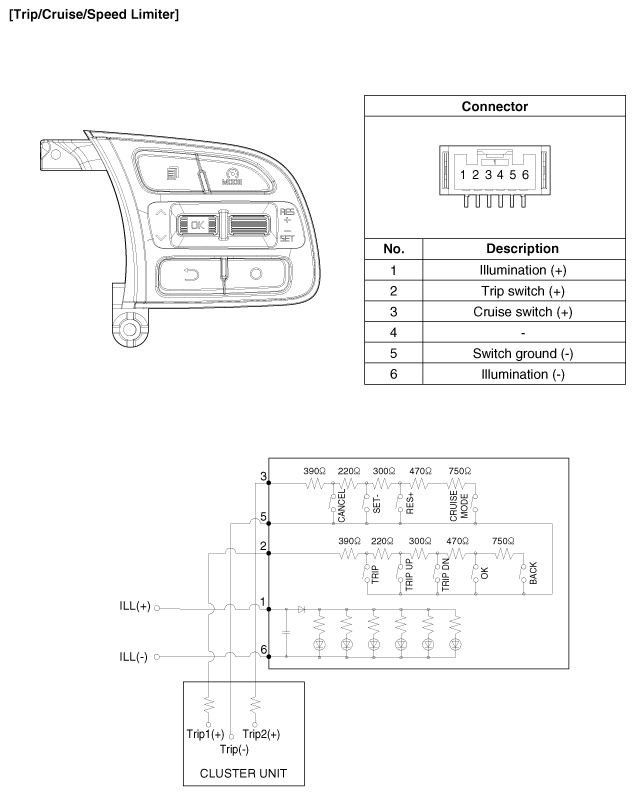

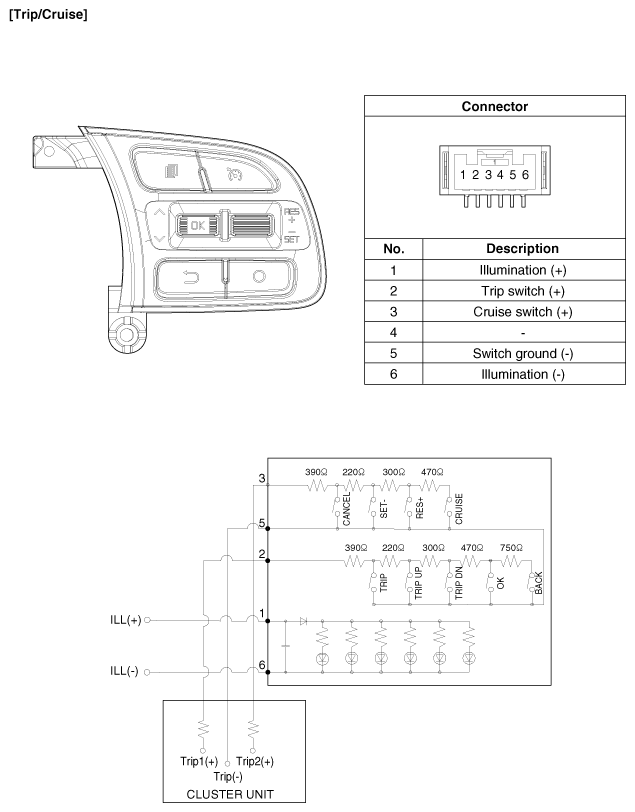

Home › Kia › 2017 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Advanced Smart Cruise Control System (PHEV) › Advanced Smart Cruise Control (ASCC) Switch › Schematic Diagrams › Circuit Diagram
