[Assist Power Window Module (ADM, IMS)]

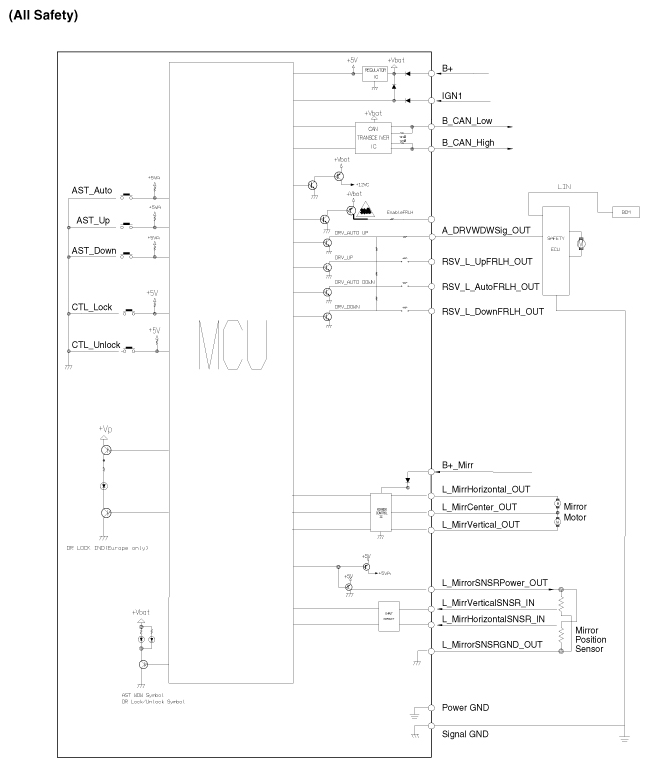

G12351750

Courtesy of KIA MOTORS AMERICA, INC.

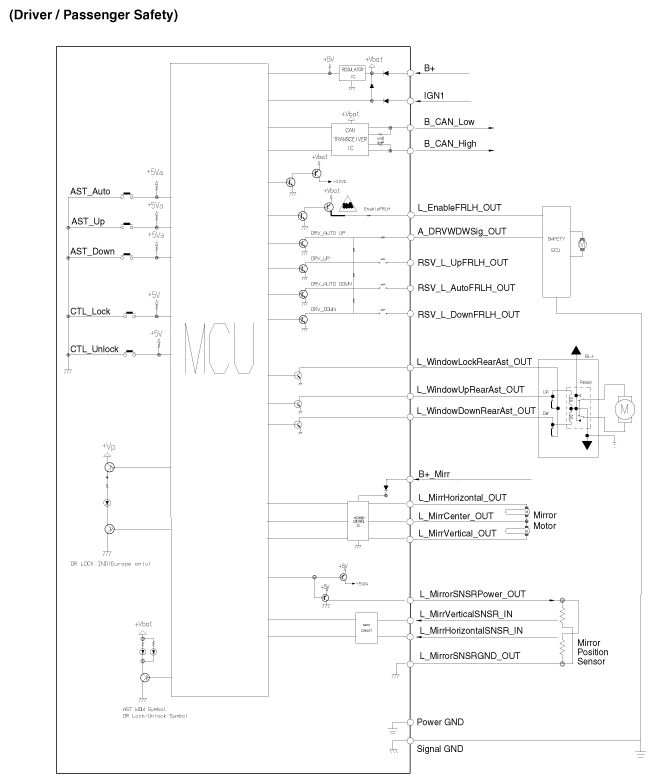

G12351751

Courtesy of KIA MOTORS AMERICA, INC.

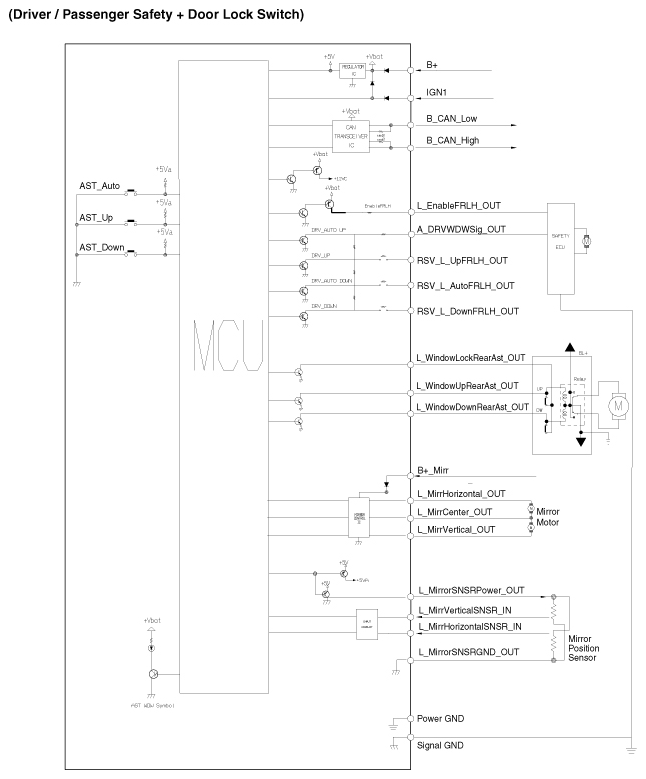

G12351752

Courtesy of KIA MOTORS AMERICA, INC.
