Repair Procedures: Removal: Installation

1. Clean the body bonding surface surroundings (A).

   Courtesy of KIA MOTORS AMERICA, INC.

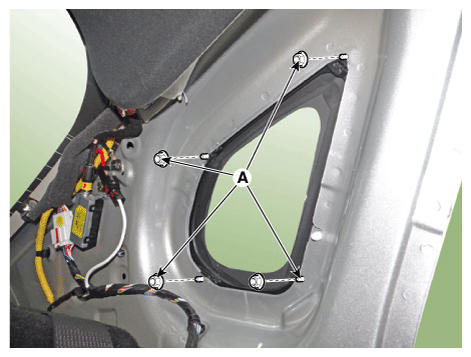

2. Install the quarter fixed glass and tighten the nut (A).

   Tightening Torque:

   3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install the rear pillar trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

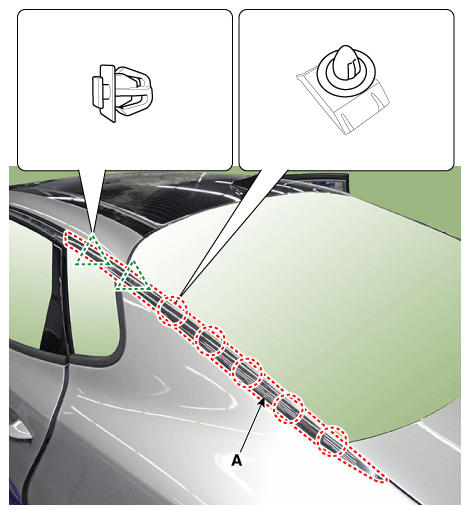

4. Install the C pillar garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Replace any damaged clips.
