Repair Procedures: Disassembly

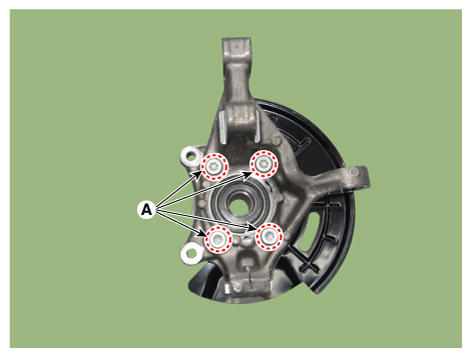

Remove the hub assembly mounting bolts (A) from the knuckle.
Tightening Torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

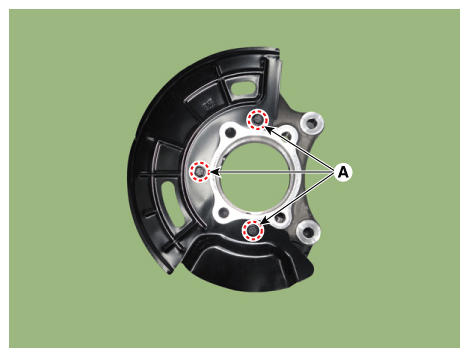

Remove the bolts (A) from the knuckle.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
