Wireless Power Charger System (PHEV)
›
Wireless Power Charging Unit
›
Components And Positions
›
Components
Components And Positions: Components

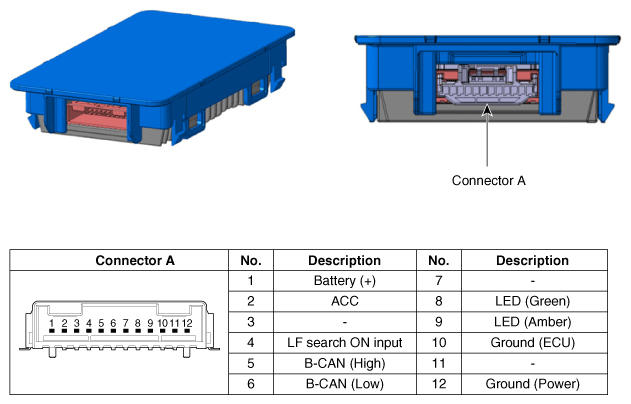

Fig 1: Wireless Power Charging Unit With Connector End View & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
