Home › Kia › 2017 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Engine Mechanical › Lubrication System (PHEV) › Oil Cooler › Components And Components Location › Components

Components And Components Location: Components

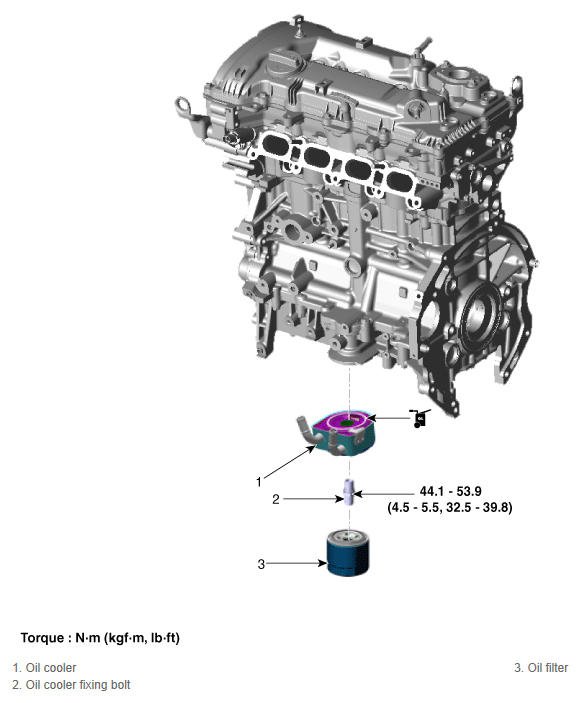

Fig 1: Oil Cooler Components With Torque Specification
G12353035Courtesy of KIA MOTORS AMERICA, INC.
