Repair Procedures: Removal

  1. Drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Disconnect the oil cooler hose (A).
  3. Remove the oil filter (B).
    G12353036Courtesy of KIA MOTORS AMERICA, INC.

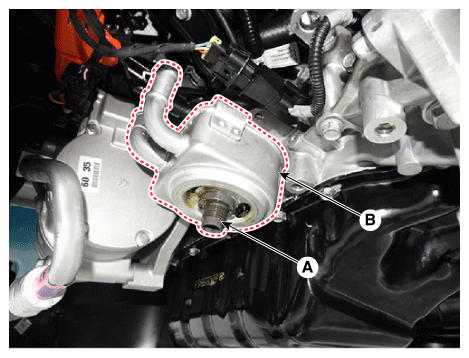

  4. Unfasten the fixing bolt (A) and then remove the oil cooler assembly (B).
G12353037Courtesy of KIA MOTORS AMERICA, INC.
