Repair Procedures: Reassembly

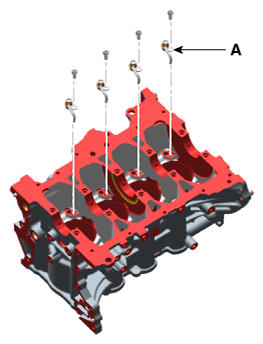

Install the piston cooling oil jet (A).
Tightening Torque:

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Assemble the remaining parts in the reverse order of disassembly.
Information

In case the cylinder block is replaced with a new one, select the proper crankshaft main bearing and the piston according to the crankshaft journal bore mark and the cylinder bore mark on the cylinder block.
- Crankshaft main bearing selection
  (Refer to Cylinder Block - "CRANKSHAFT ")
- Piston selection
  (Refer to Cylinder Block - "PISTON AND CONNECTING ROD ")
