Components And Components Location: Components

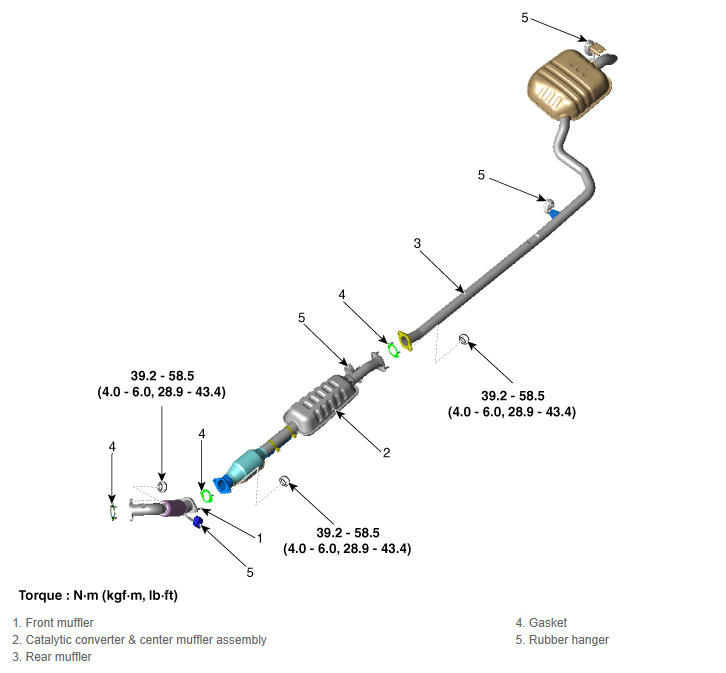

Fig 1: Muffler And Catalytic Converter Components With Torque Specification
G12352993Courtesy of KIA MOTORS AMERICA, INC.
