Timing System (PHEV)
›
Components And Components Location
›
Components
Components And Components Location: Components

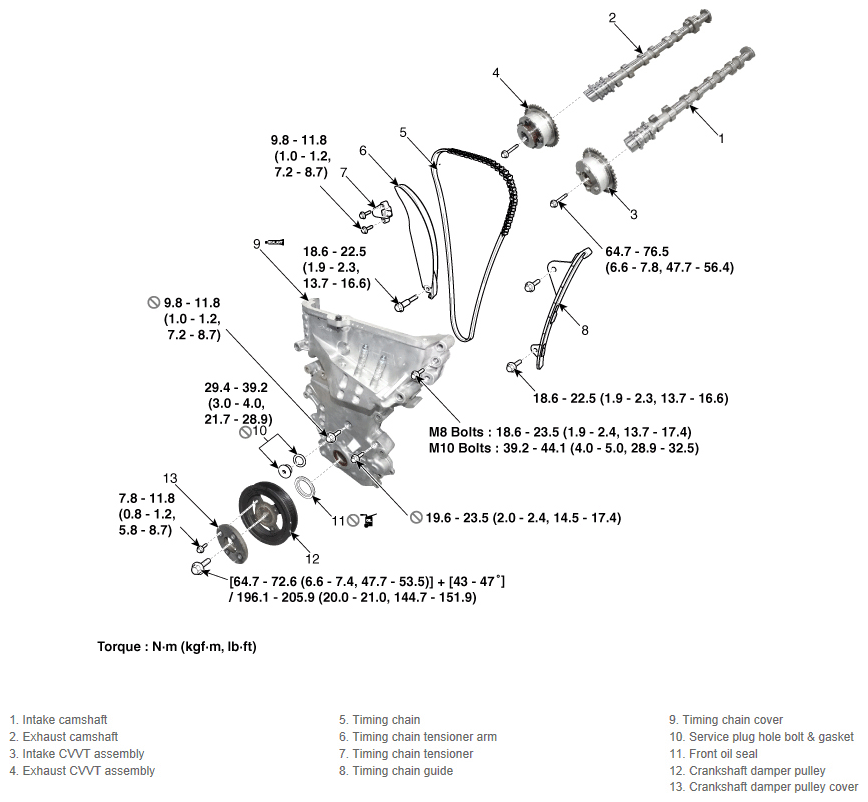

Fig 1: Timing System Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
