Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

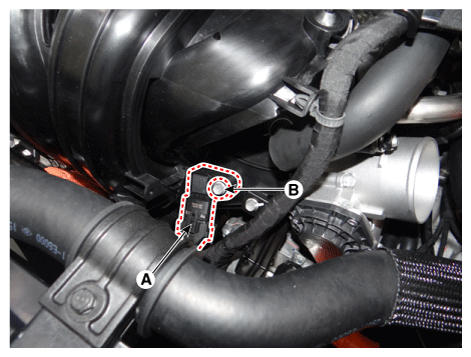

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor from the surge tank.
Intake Air Temperature Sensor (IATS) mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
