Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery (-) terminal.

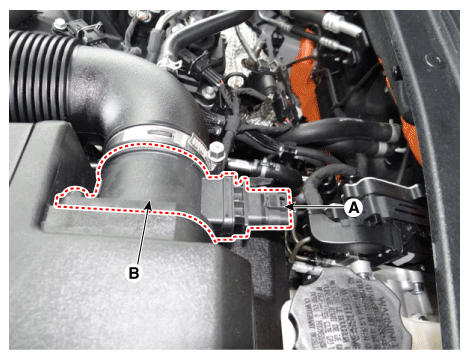

- Disconnect the mass air flow sensor connector (A) and the installation clamp.
- Remove the mass air flow sensor (B).
Mass air flow sensor mounting bolt:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)
Mass air flow sensor clamp mounting bolt:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)
