Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

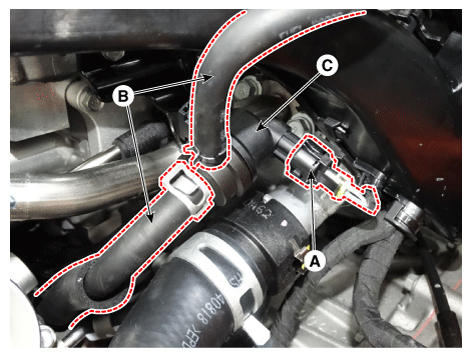

  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  5. Remove the purge control solenoid valve (C).
G12347336
