Repair Procedures: Removal

Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

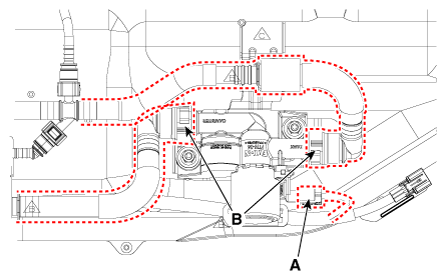

Disconnect the fuel tank isolation valve connector (A).
Disconnect the vapor tube quick-connectors (B).

Courtesy of KIA MOTORS AMERICA, INC.

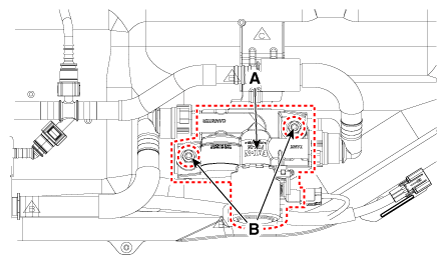

Remove the fuel tank isolation valve (B) after loosening the mounting nuts (A).
Fuel tank isolation valve mounting nut:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
