Clock Spring

WARNING: This page is about a different variant/trim than selected.

If, as a result of the following checks, even one abnormality is discovered, replace the clock spring with a new one.
Check connectors and protective tube for damage, and terminals for deformities.

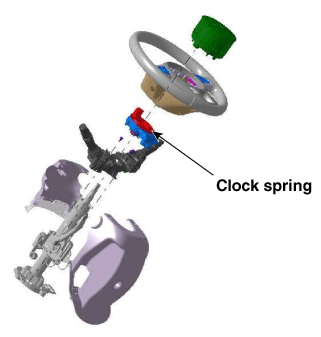

Fig 1: Locating Clock Spring

Courtesy of KIA MOTORS AMERICA, INC.

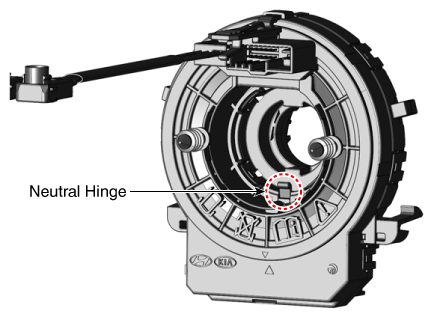

Fig 2: Locating Neutral Hinge

Courtesy of KIA MOTORS AMERICA, INC.
