FOB Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After ignition "ON", select the "FOB KEY STATUS INFO".

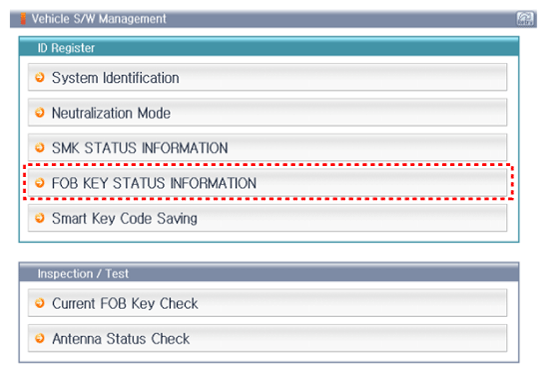

Fig 1: Scantool Display - Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

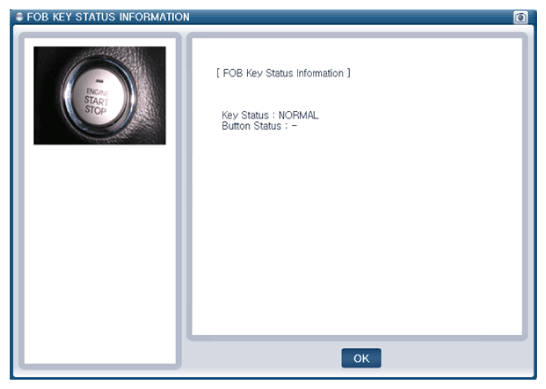

Fig 2: Scantool Display - FOB Key Status Information

Courtesy of KIA MOTORS AMERICA, INC.
