Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

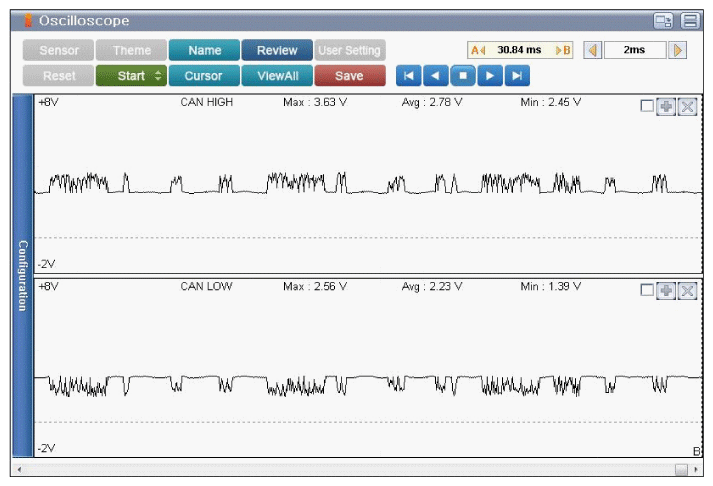

Fig 1: Screen Display - C-CAN Low & High Signal Waveform

G12137689

Courtesy of KIA MOTORS AMERICA, INC.

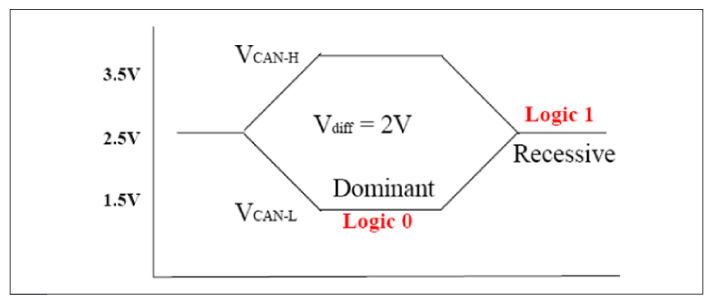

Fig 2: C-CAN Bus Voltage Level (High Speed CAN)

G12137690

Courtesy of KIA MOTORS AMERICA, INC.
