Components and Components Location: Component

WARNING: This page is about a different variant/trim than selected.

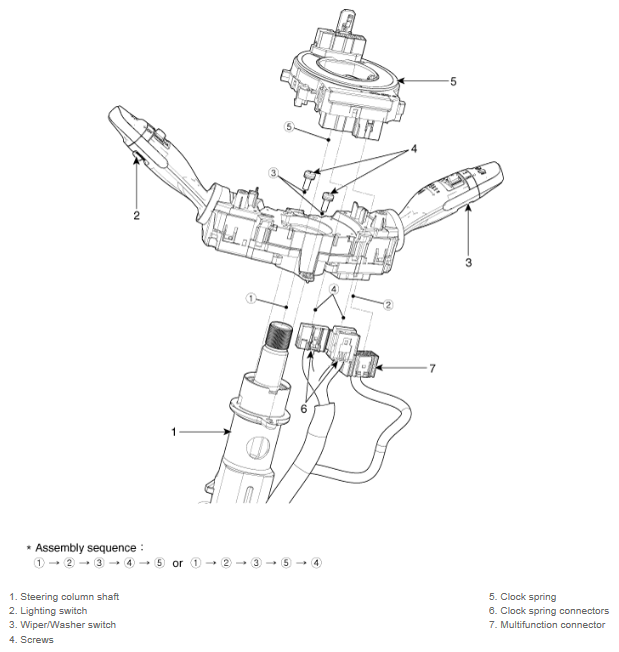

Fig 1: Multifunction Switch Components (1 Of 2)
G12143426Courtesy of KIA MOTORS AMERICA, INC.

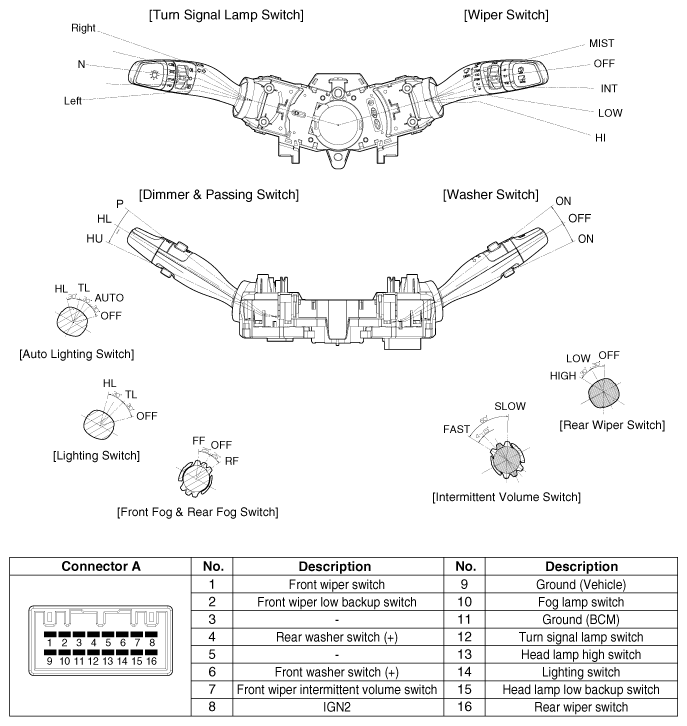

Fig 2: Multifunction Switch Components (2 Of 2)
G12143427Courtesy of KIA MOTORS AMERICA, INC.
