Component Location

WARNING: This page is about a different variant/trim than selected.

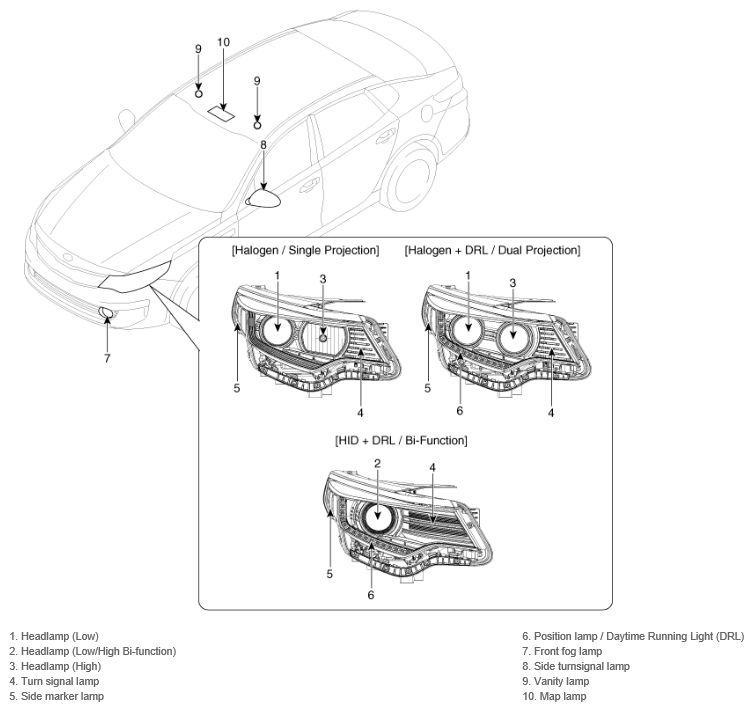

Fig 1: Lighting System Components (1 Of 2)
G12143341Courtesy of KIA MOTORS AMERICA, INC.

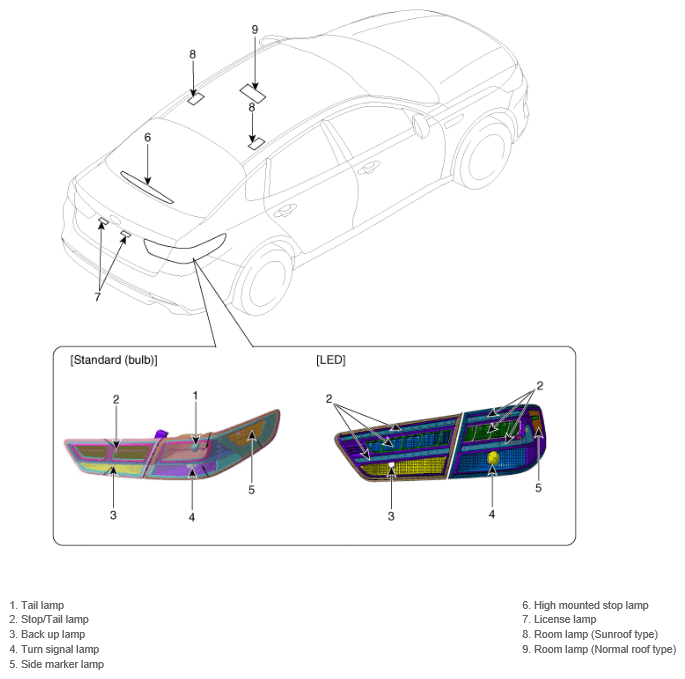

Fig 2: Lighting System Components (2 Of 2)
G12143342Courtesy of KIA MOTORS AMERICA, INC.
