Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Detach the vanity lamp (A) using a flat-tip screwdriver.

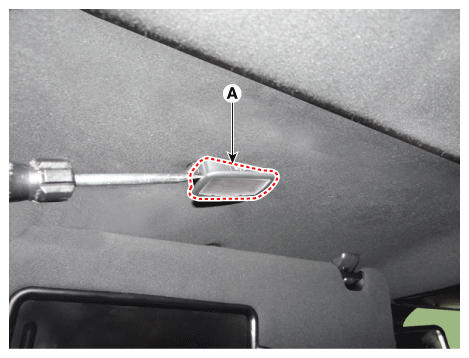

    Fig 1: Detaching Vanity Lamp Using Flat-Tip Screwdriver
    G12143385Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the vanity lamp connector (A).

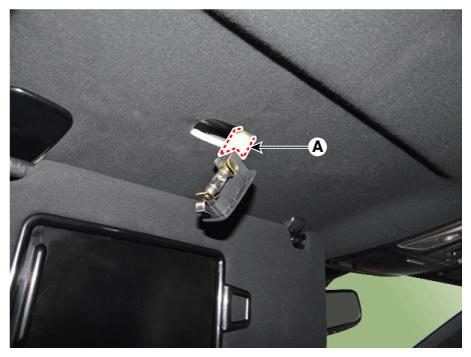

    Fig 2: Disconnecting Vanity Lamp Connector
    G12143386Courtesy of KIA MOTORS AMERICA, INC.
