Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")
Disconnect the connector and then remove the auto defogging actuator (A) after loosening the screws.

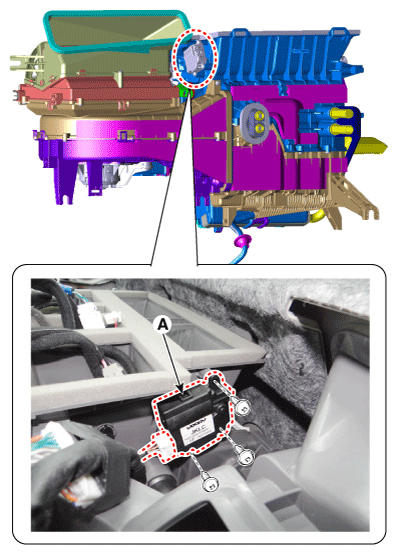

Fig 1: Locating Auto Defogging Actuator With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
