Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
After loosening the nuts and bolts, remove the main crash pad and cowl cross bar assembly altogether.
(Refer to Heater - "Heater Unit ")
Remove the shower duct [LH] (A) after loosening the screw.

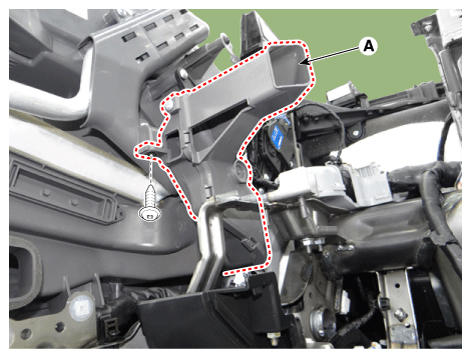

Fig 1: Locating Shower Duct (LH) With Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the heater core cover (A) after loosening the mounting screws.

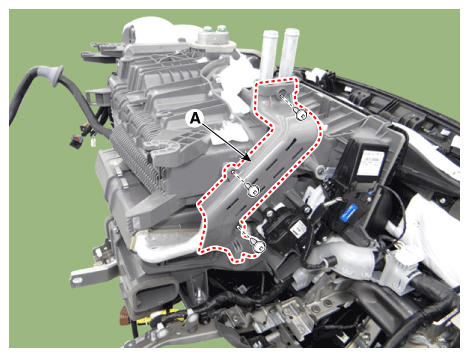

Fig 2: Locating Heater Core Cover With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Pull out the heater core (A) from the heater unit.

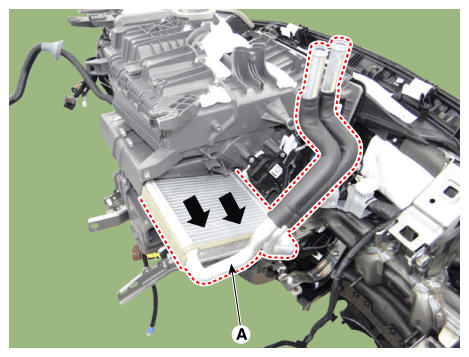

Fig 3: Pulling Out Heater Core From Heater Unit
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
