Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver's side shower duct (A) after loosening the screw.

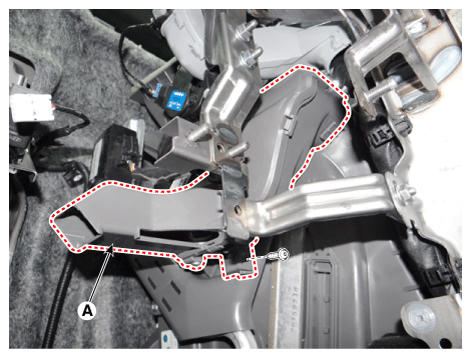

    Fig 1: Locating Driver'S Side Shower Duct With Screw
    G12145105Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the screws.

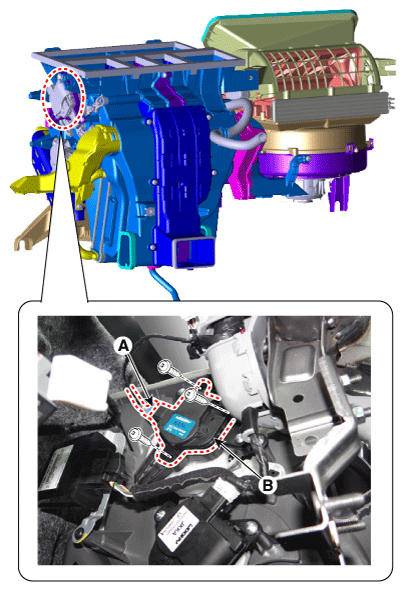

    Fig 2: Locating Mode Control Actuator And Connector With Screws
    G12145106Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
