Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the glove box housing.
(Refer to Body - "CRASH PAD (EXCEPT HEV) ")

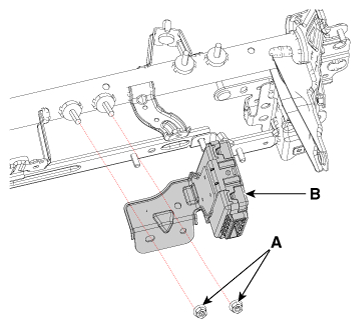

- Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).
