Components And Components Location
›
Components

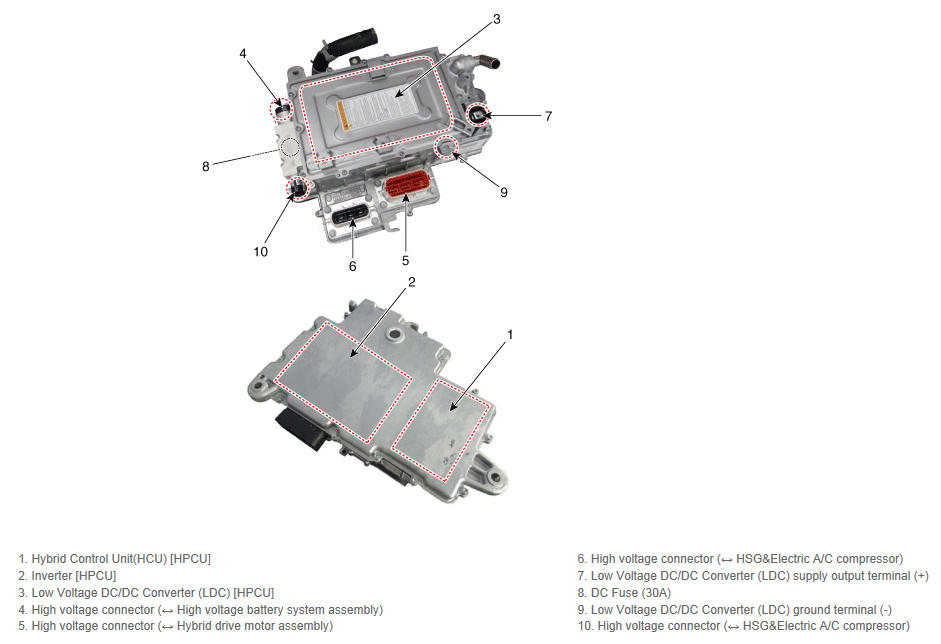

Components And Components Location: Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
