Repair and Diagnosis
›
Hybrid/Electric Powertrain
›
Electric Converters and Controllers
›
Hybrid Control System (PHEV)
›
Hybrid Power Control Unit (HPCU)
›
Schematic Diagrams
›

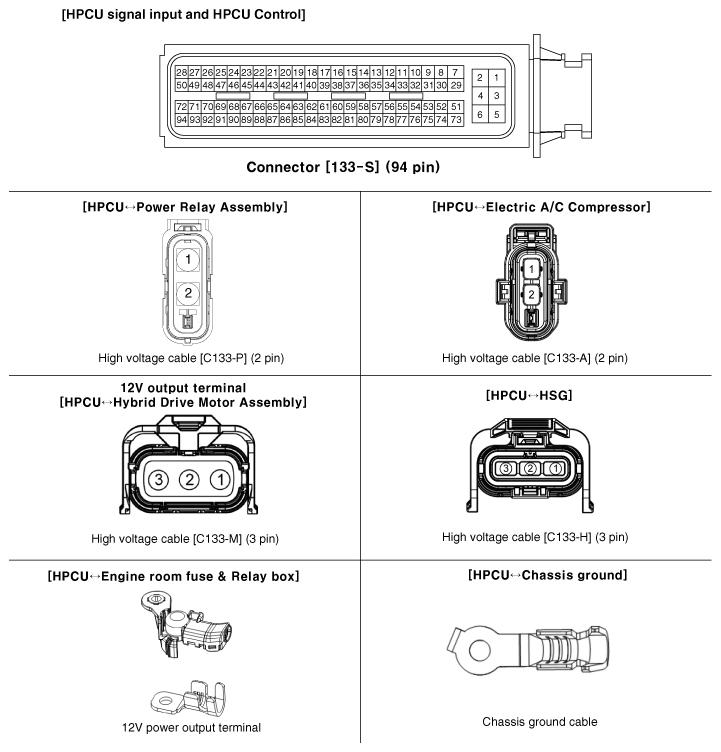

Hybrid Power Control Unit (HPCU) Terminal And Input/Output Signal
›
Notes
Hybrid Power Control Unit (HPCU) Terminal And Input/Output Signal: Notes
