Power Cable (PHEV)
›

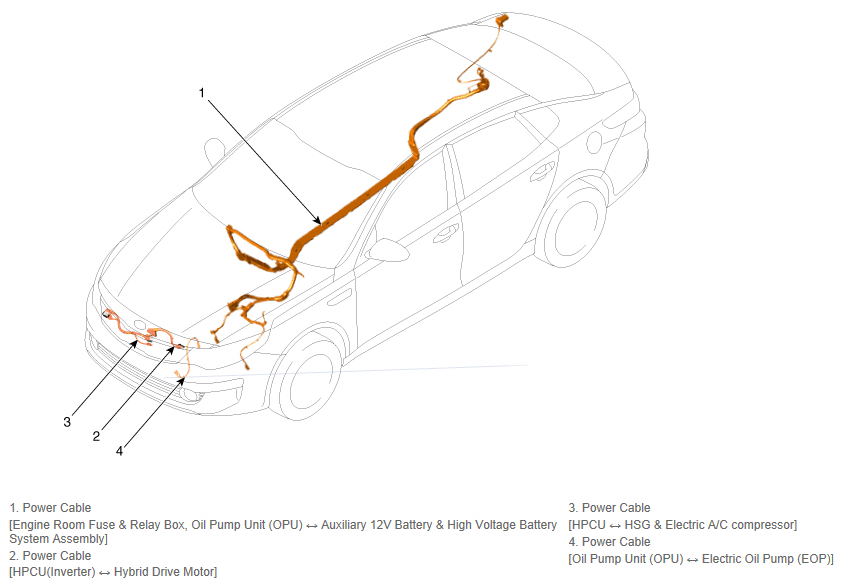

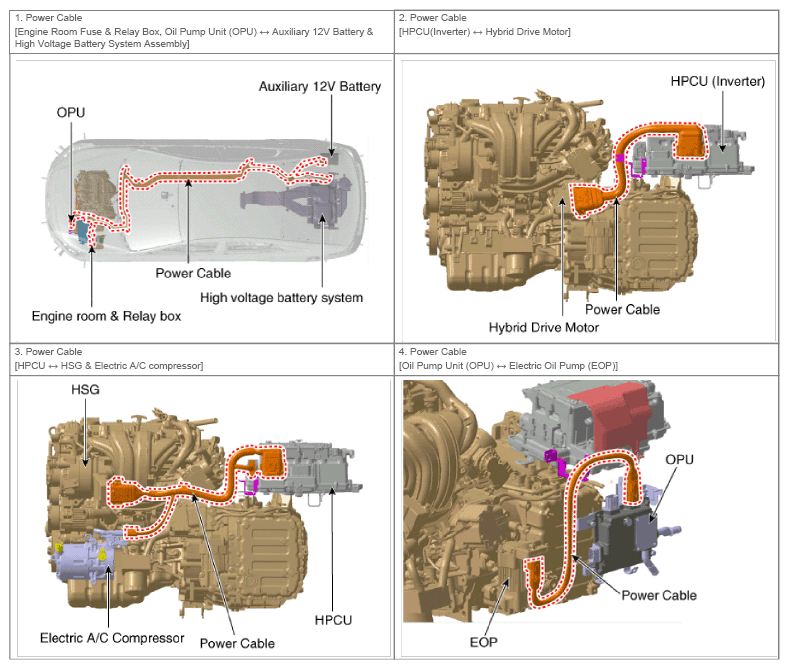

Components And Components Location
›
Components
Components And Components Location: Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
