Components
Components And Components Location: Components

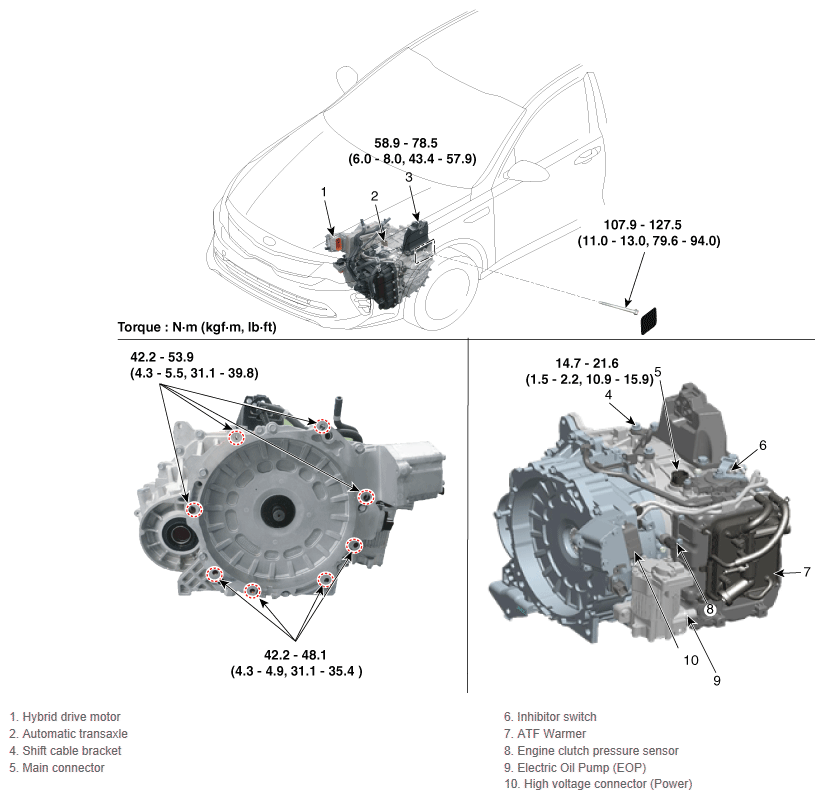

Fig 1: Automatic Transaxle Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
