Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant of engine & transaxle cooling system.
(Refer to Engine Mechanical System - "COOLANT ")

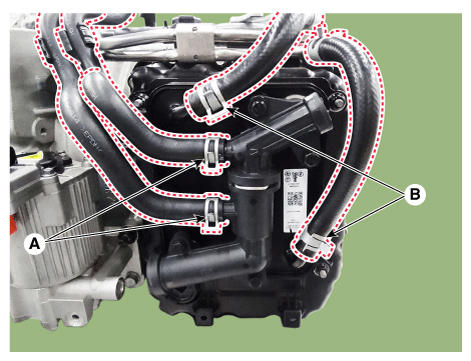

Separate the coolant hose (A) and ATF cooler hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

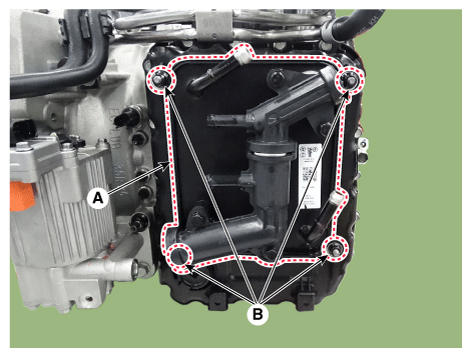

Remove the ATF warmer (A) loosening nuts (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
