Description And Operation: Description

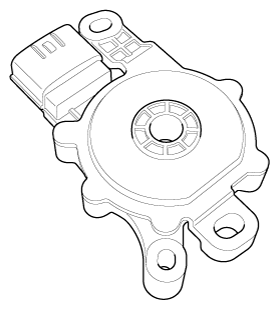

• The inhibitor switch is installed on top of transaxle, and is connected to the shift lever by a shift cable.
• Inhibitor switch signals (S1, S2, S3, S4) are transmitted to the TCM according to the driver's shift lever control.

Courtesy of KIA MOTORS AMERICA, INC.
