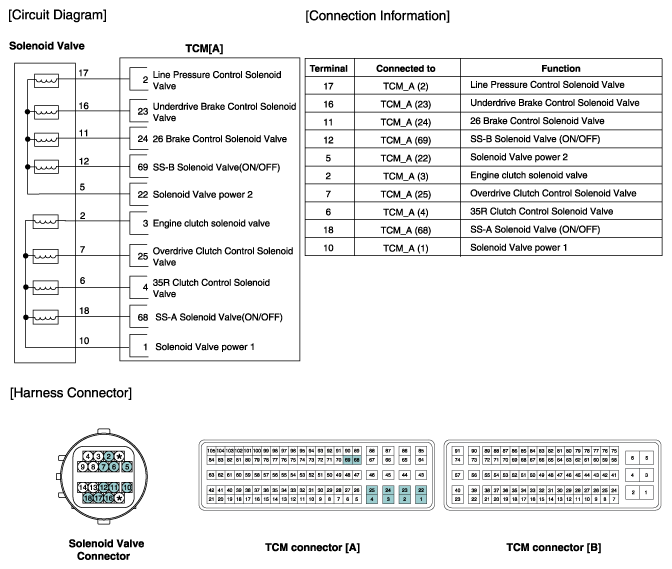

Home › Kia › 2017 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (PHEV) › Line Pressure Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
