Home › Kia › 2017 › Optima SX Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › CVVT Oil Temperature Sensor (OTS) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the oil temperature sensor connector (A).
  3. Remove the oil temperature sensor.

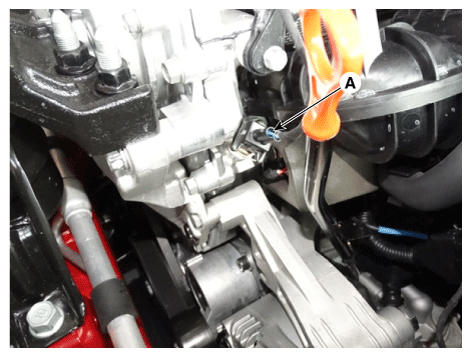

    Fig 1: Disconnecting Oil Temperature Sensor Connector
    G12145749Courtesy of KIA MOTORS AMERICA, INC.
