Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the RCV control solenoid valve after disconnect the connector (A), bolt (B) and RCV hoses (C).

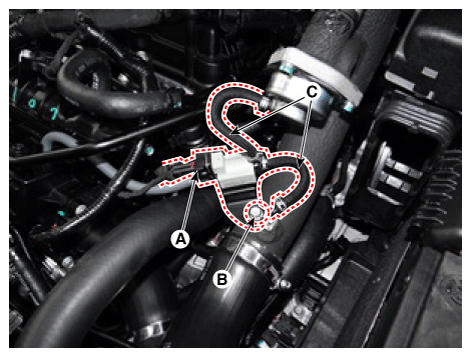

    Fig 1: Removing RCV Control Solenoid Valve
    G12145816Courtesy of KIA MOTORS AMERICA, INC.
