Circuit Diagram

(M/T)

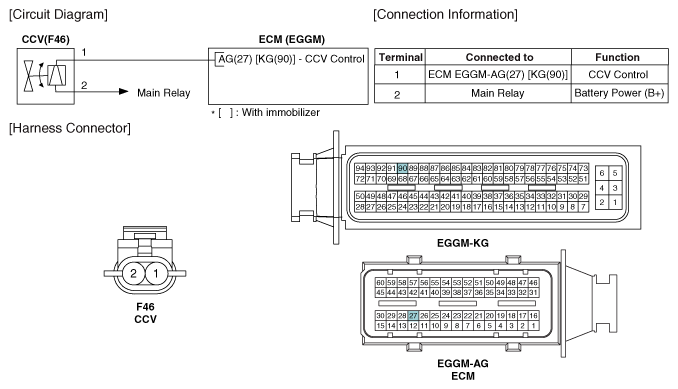

Fig 1: Canister Close Valve Circuit (M/T)
G11845223Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

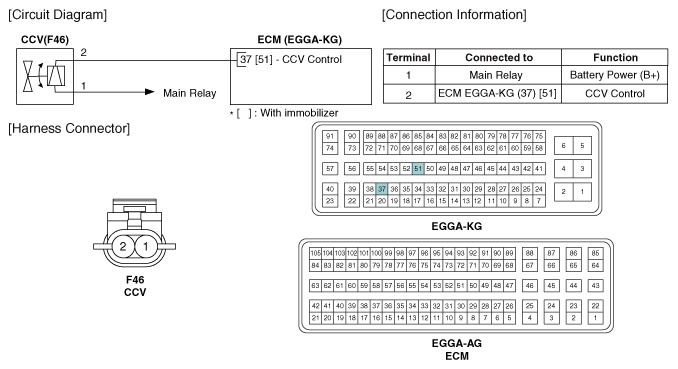

Fig 2: Canister Close Valve Circuit (A/T)
G11845224Courtesy of KIA MOTORS AMERICA, INC.
