Engine Starting System
›
Starter
›
Components And Components Location
›
Components
Components And Components Location: Components

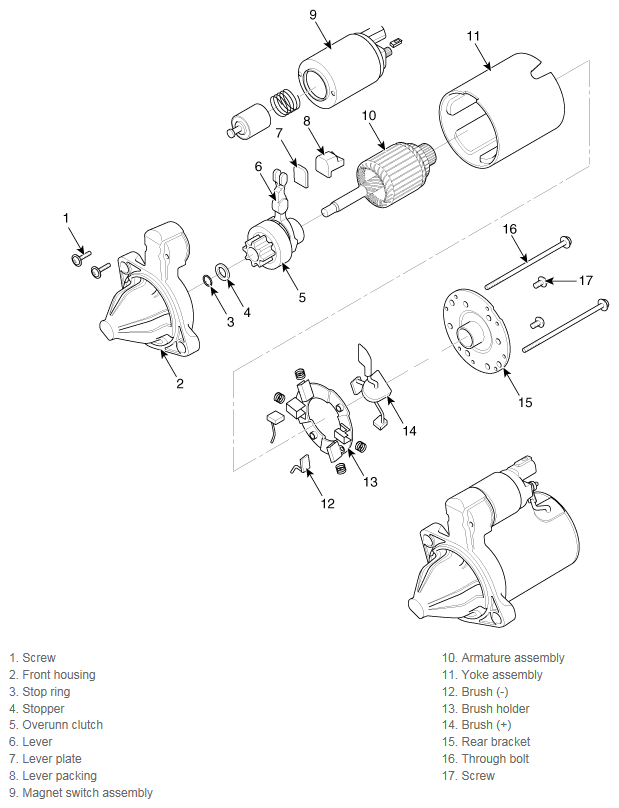

Fig 1: Starter Components Exploded View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
