Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".
    Fig 1: Scantool Display - ID Resister And Antenna Status Check
    G11846522Courtesy of KIA MOTORS AMERICA, INC.
  3. After IGN ON, select the "Antenna Status Check".

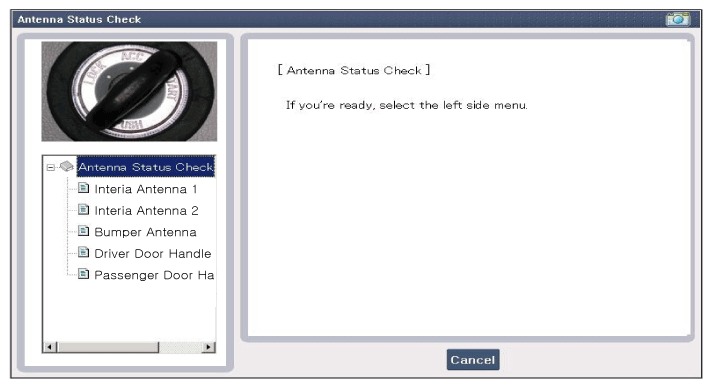

    Fig 2: Scantool Display - Antenna Status Check
    G11846523Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

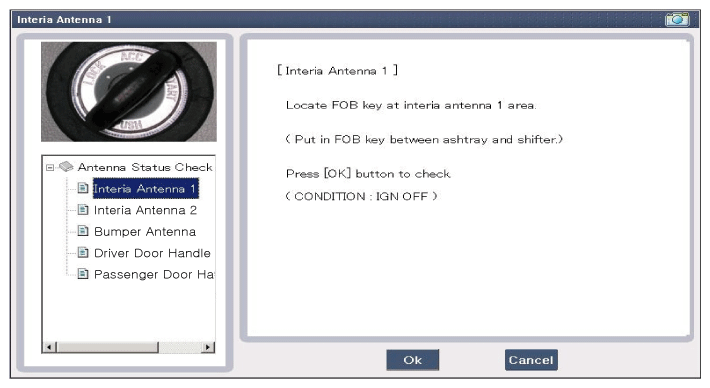

    Fig 3: Scantool Display - Interior Antenna 1
    G11846524Courtesy of KIA MOTORS AMERICA, INC.

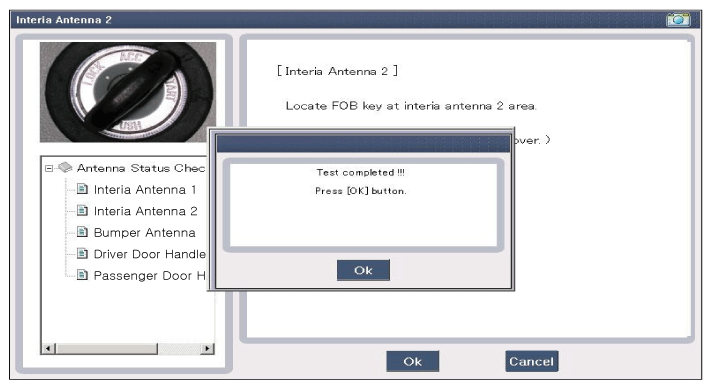

    Fig 4: Scantool Display - Interior Antenna 2 (Test Completed)
    G11846525Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • INTERIOR Antenna 1
    • INTERIOR Antenna 2
    • Trunk antenna
    • BUMPER/Antenna
    • DRV_DR Antenna
    • AST_DR Antenna
