Home › Kia › 2017 › Rio SX › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Button Engine Start System › Start/Stop Button › Components And Components Location › Component

Components And Components Location: Component

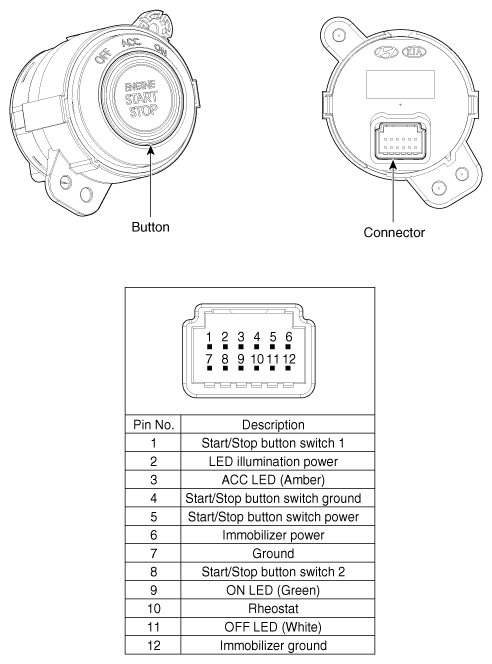

Fig 1: Locating Start/Stop Button Components
G11849796Courtesy of KIA MOTORS AMERICA, INC.
