System Circuit
›
Passenger Power Window Switch
Passenger Power Window Switch

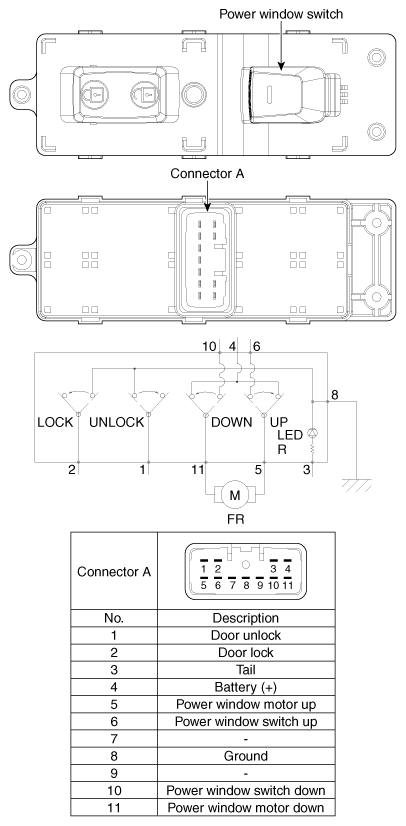

Fig 1: Passenger Power Window Switch System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
