Components And Components Location: Components

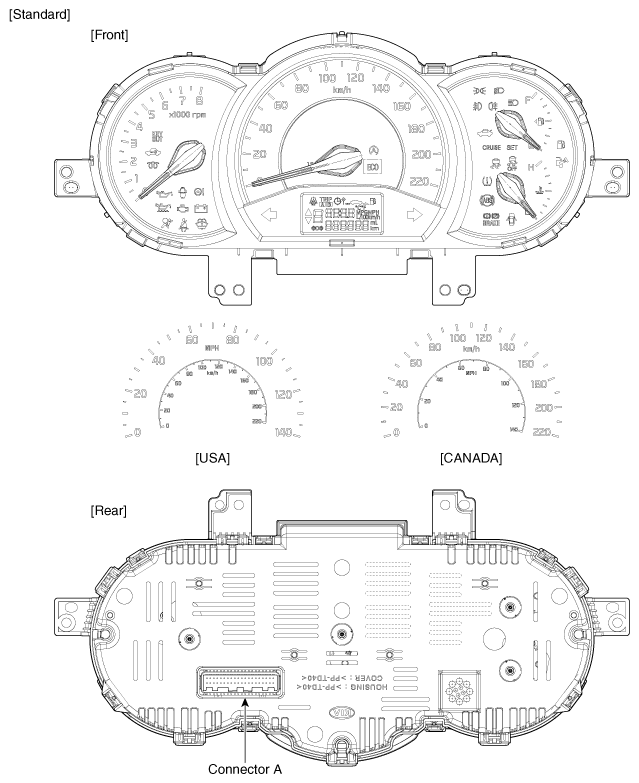

Fig 1: Locating Instrument Cluster Components (Standard)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Instrument Cluster Connector Pins (Standard)

Courtesy of KIA MOTORS AMERICA, INC.

Pin No.	Description
1	Cluster ground
2	P ground
3	Rheostat output
4	Rheostat detent output
5	ALT L output
6	High beam (+)
7	4P output
8	AT P output
9	AT N output
10	AT D output
11	Fuel input
12	-
13	Parking brake
14	Airbag supply
15	Check engine
16	Water separator
17	-
18	Immobilizer
19	Key out
20	Washer low
21	S ground
22	Fuel (-)
23	-
24	DC-DC (ISG)
25	Battery (+)
26	Ignition 1
27	Speed
28	-
29	C_CAN_HIGH
30	C_CAN_LOW
31	B_CAN_LOW
32	B_CAN_HIGH
33	Rheostat up
34	Rheostat down
35	Cluster signal
36	Active ECO
37	-
38	Oil pressure
39	Battery charge
40	Illumination (+)

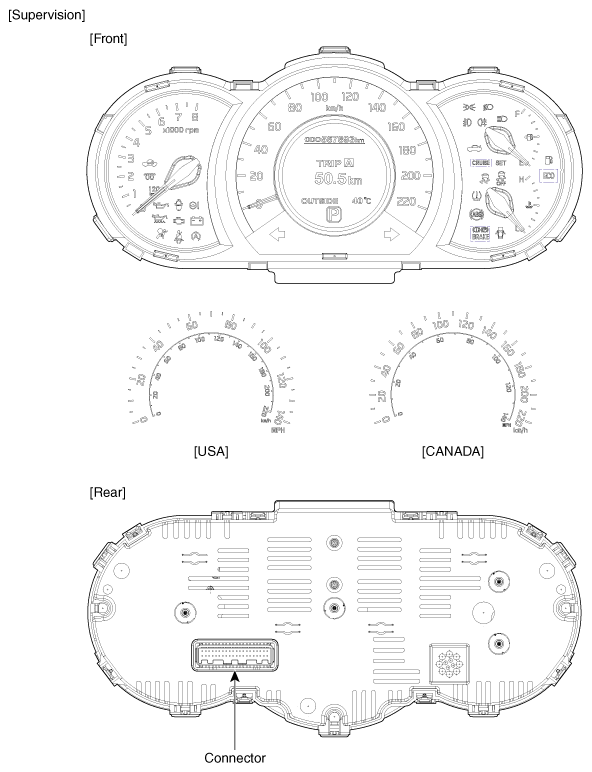

Fig 3: Locating Instrument Cluster Components (Supervision)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Instrument Cluster Connector Pins (Supervision)

Courtesy of KIA MOTORS AMERICA, INC.

Pin No.	Description
1	Cluster ground
2	P ground
3	Rheostat output
4	Rheostat detent output
5	ALT L output
6	High beam (+)
7	4P output
8	AT P output
9	AT N output
10	AT D output
11	Fuel input
12	-
13	Parking brake
14	Airbag supply
15	Check engine
16	Water separator
17	-
18	Immobilizer
19	-
20	Washer low
21	S ground
22	Fuel (-)
23	-
24	DC-DC (ISG)
25	Battery (+)
26	Ignition 1
27	Speed
28	-
29	C_CAN_HIGH
30	C_CAN_LOW
31	B_CAN_LOW
32	B_CAN_HIGH
33	Rheostat up
34	Rheostat down
35	Cluster signal
36	Active ECO
37	-
38	Oil pressure
39	Battery charge
40	Illumination (+)
