Engine Mechanical
›
Lubrication System
›
Engine Oil
›
Flow Diagram
›
Engine Oil Flow Diagram
Engine Oil Flow Diagram

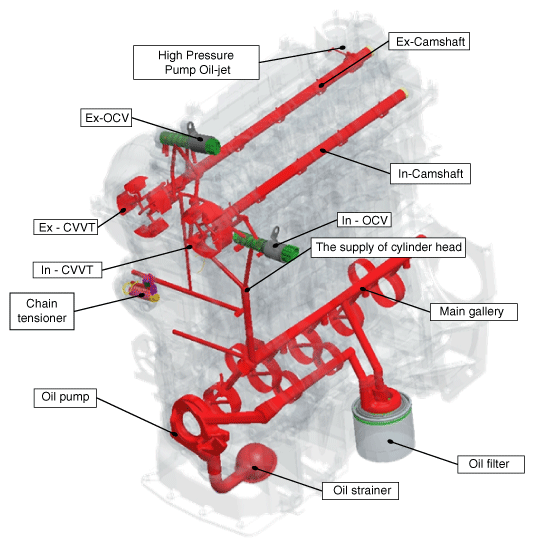

Fig 1: Lubrication System Components
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Engine Oil Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
